| Flywheel Diameter | 9.094 |
| Flywheel Cup Depth/Step Height | -0.506 |
| Flywheel Inner Diameter | 5.61 |
| Heavy Duty Supplier | Yes |
| Number Of Mounting Bores | 2 |
| Number of Teeth | 106 |
| Dowel Hole Pattern | 5 |
| Bolt Hole Pattern | 2 |
| Dowel hole diameter | 0.315 |
| Bolt hole PCD crankshaft | 60 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Flywheel friction surface outer diameter | 231 |
| Ring Gear Chamfer matches OE | Ring Gear Chamfer matches OE |
| Ring Gear Chamfer Side | Engine |
| Number of teeth, starter ring gear | 106 |
| Ring Gear Major Dia. | 271.37 |
| Flange Thickness | 11.81 |
| I.D. for Pilot | 34.95 |
| Ring Gear Mounting O.D. | 245.83 |
| Crank To Friction Surface | 20.38 |
| Overall Casting O.D. | 267.76 |
| Ring Gear Thickness | 8.35 |
| Bolt hole PCD clutch pres.plte | 246.65 |
| Flywheel Cup Depth or Step Height | -12.85 |
| Flywheel Thickness [mm] | 41.63 |
| Centering diameter / dowel hole | 246.65 |
| Crank Hole Dia. | 0.4882 |
| Flywheel Friction Surface Inner diameter | 5.6102 |

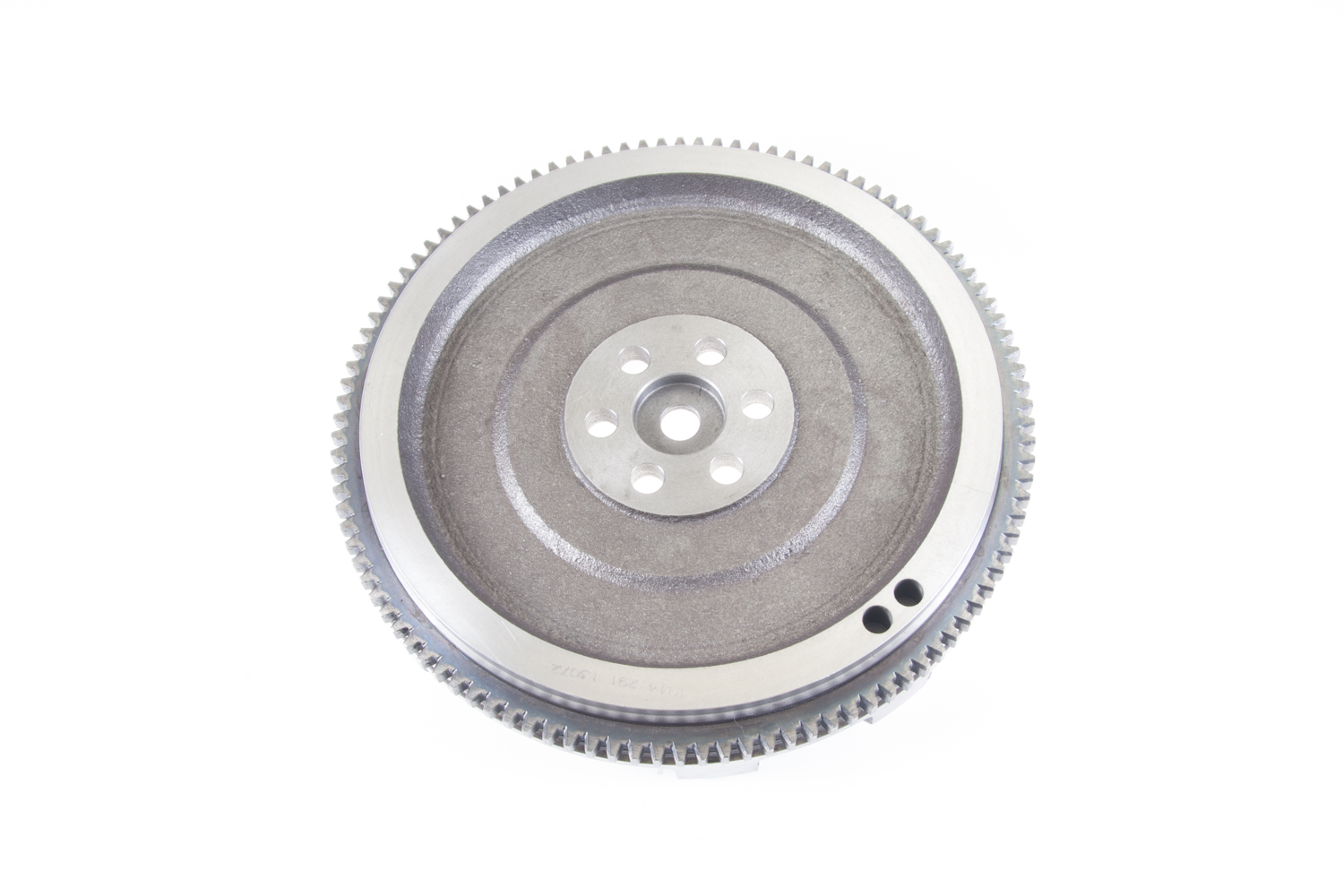

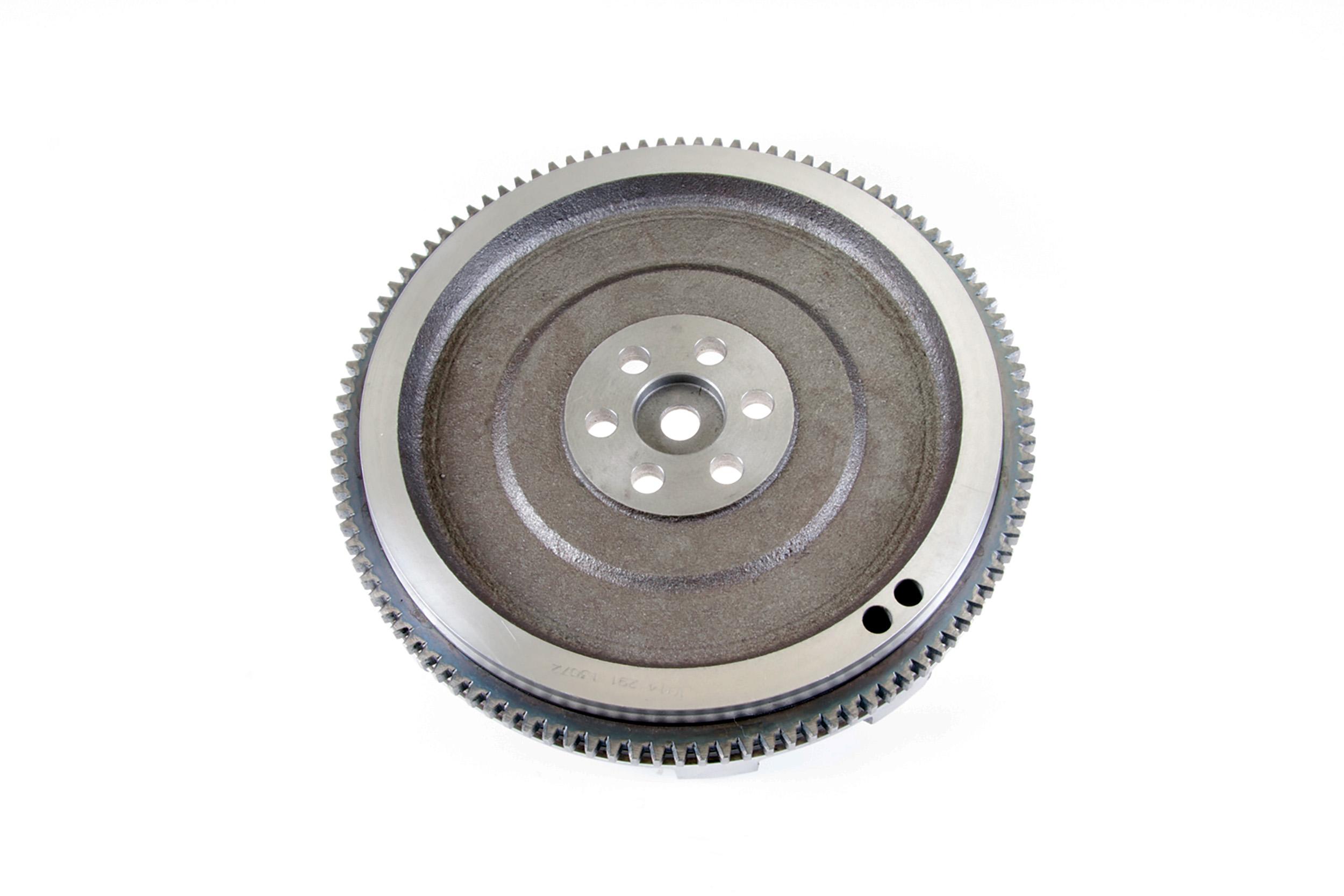

| Part Terminology | Clutch Flywheel |
