| Flywheel Diameter | 10.039 |
| Flywheel Cup Depth/Step Height | 0.5 |
| Flywheel Inner Diameter | 6.22 |
| Heavy Duty Supplier | Yes |
| Number of Teeth | 115 |
| Dowel Hole Pattern | 5 |
| Bolt hole PCD crankshaft | 72 |
| Ring Gear Mounting O.D. | 260 |
| Ring Gear Thickness | 9 |
| Has Dowel Pins | with Dowel Pins |
| Dowel hole diameter | 8 |
| Number of teeth, starter ring gear | 115 |
| Flywheel Friction Surface Inner diameter | 158 |
| Overall Casting O.D. | 292 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Chamfer Side | Engine |
| Flywheel matches Clutch | Flywheel matches Clutch |
| Flywheel friction surface outer diameter | 255 |
| Bolt Hole Pattern | 4 |
| Bolt hole PCD clutch pres.plte | 276 |
| Centering diameter / dowel hole | 276 |
| Ring Gear Major Dia. | 295.25 |
| Flange Thickness | 17.55 |
| Flywheel Thickness [mm] | 43 |
| Crank Hole Dia. | 0.4213 |
| Flywheel Cup Depth or Step Height | 0.0197 |
| Crank To Friction Surface | 1.4882 |
| I.D. for Pilot | 1.6476 |

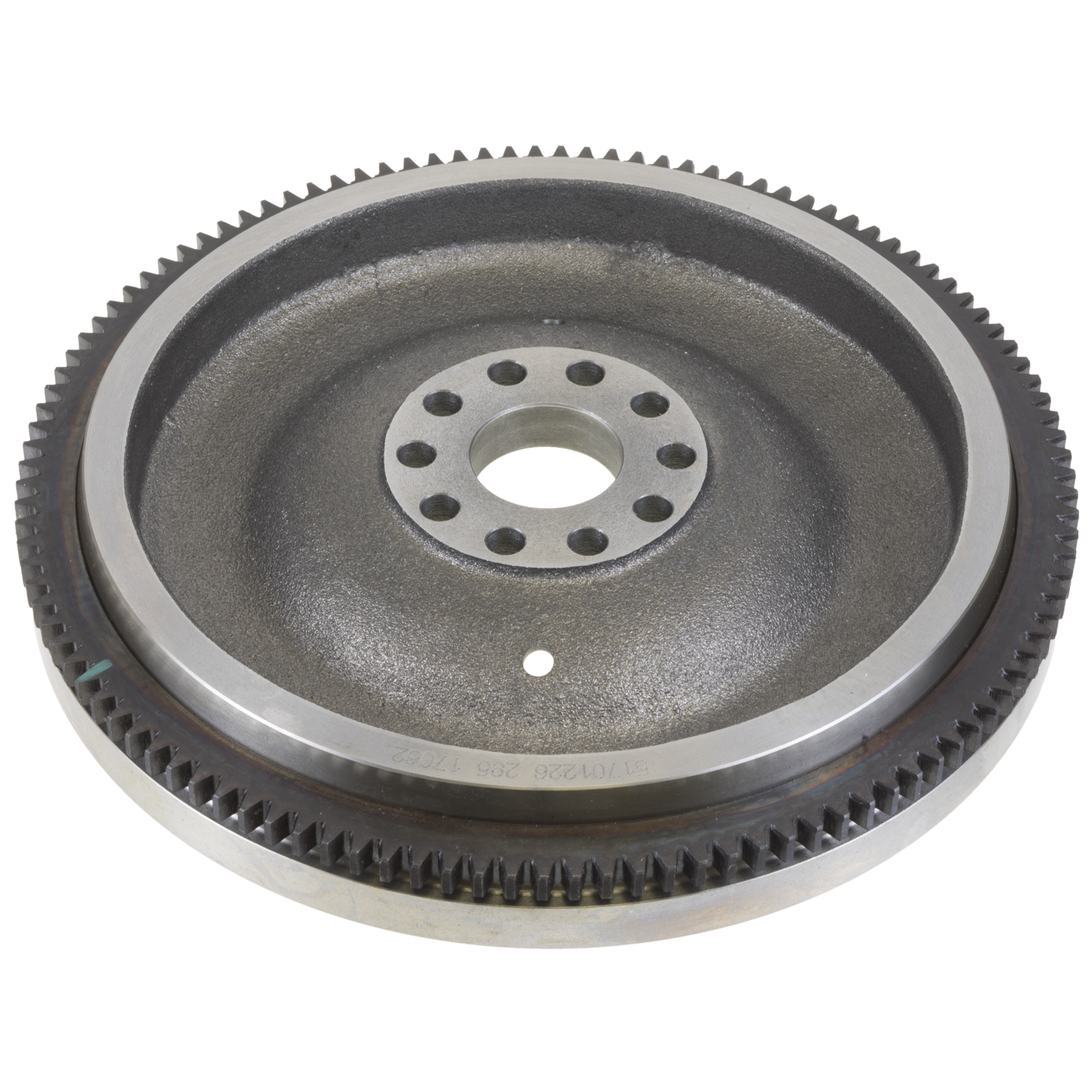

| Part Terminology | Clutch Flywheel |
