| Ring Gear Thickness | 9 |
| Heavy Duty Supplier | Yes |
| Flywheel Cup Depth/Step Height | -0.9 |
| Number of teeth, starter ring gear | 109 |
| Dowel hole diameter | 6 |
| Flywheel friction surface outer diameter | 195 |
| Crank Hole Dia. | 12.38 |
| Centering diameter / dowel hole | 8.189 |
| Ring Gear Major Dia. | 282.25 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 266 |
| Flywheel Friction Surface Inner diameter | 130 |
| Bolt hole PCD crankshaft | 62.7 |
| Flywheel Inner Diameter | 5.118 |
| Flywheel Thickness [mm] | 23.6 |
| Flywheel Cup Depth or Step Height | -0.9 |
| Ring Gear Chamfer Side | Engine |
| Flange Thickness | 9 |
| Crank To Friction Surface | 0.7657 |
| I.D. for Pilot | 37 |
| Number of Teeth | 109 |
| Ring Gear Chamfer matches OE | Ring Gear Chamfer matches OE |
| Bolt Hole Pattern | 11 |
| Flywheel Diameter | 7.677 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Mounting O.D. | 10.0543 |
| Number Of Mounting Bores | 2 |
| Has Dowel Pins | with Dowel Pins |
| Bolt hole PCD clutch pres.plte | 210 |

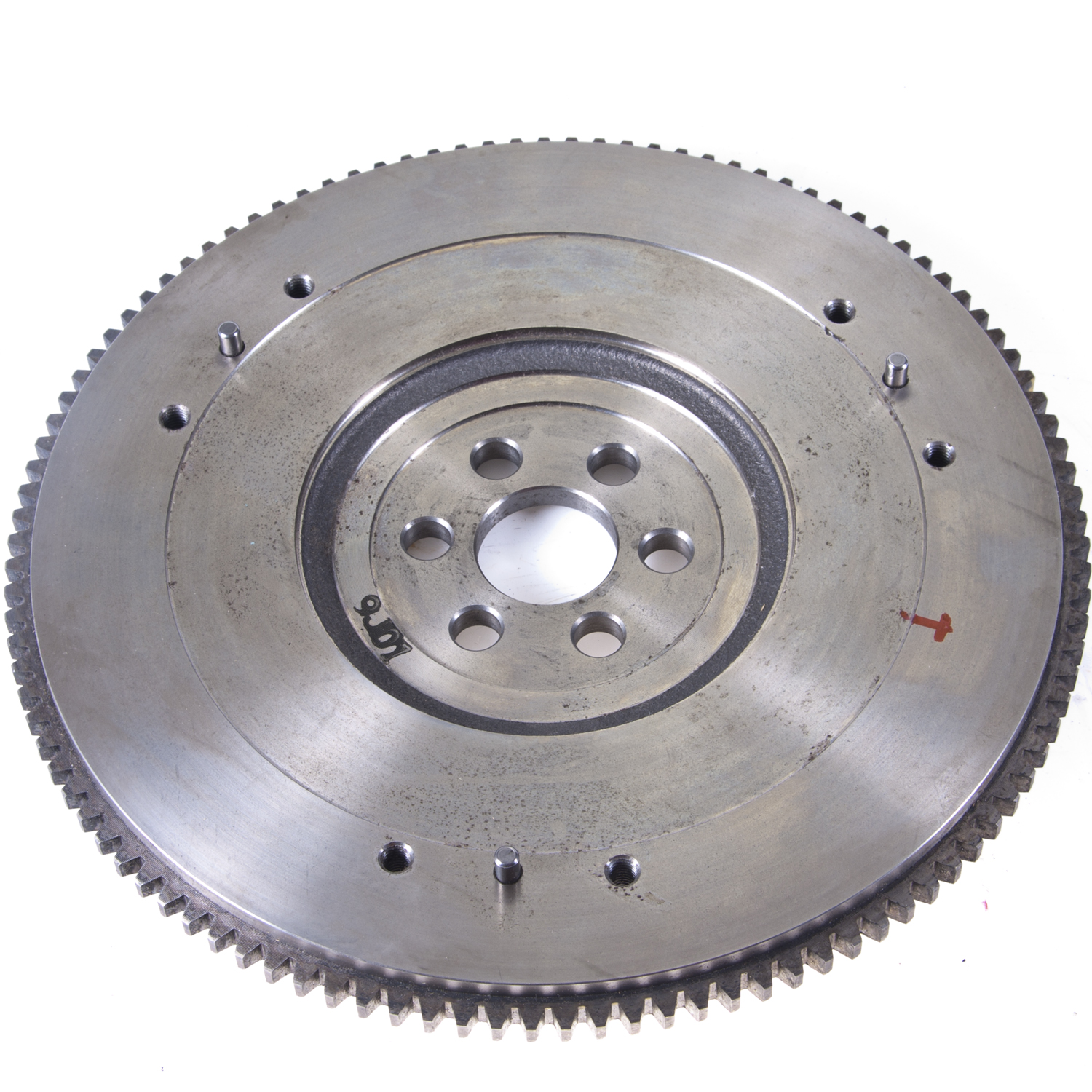

| Part Terminology | Clutch Flywheel |
