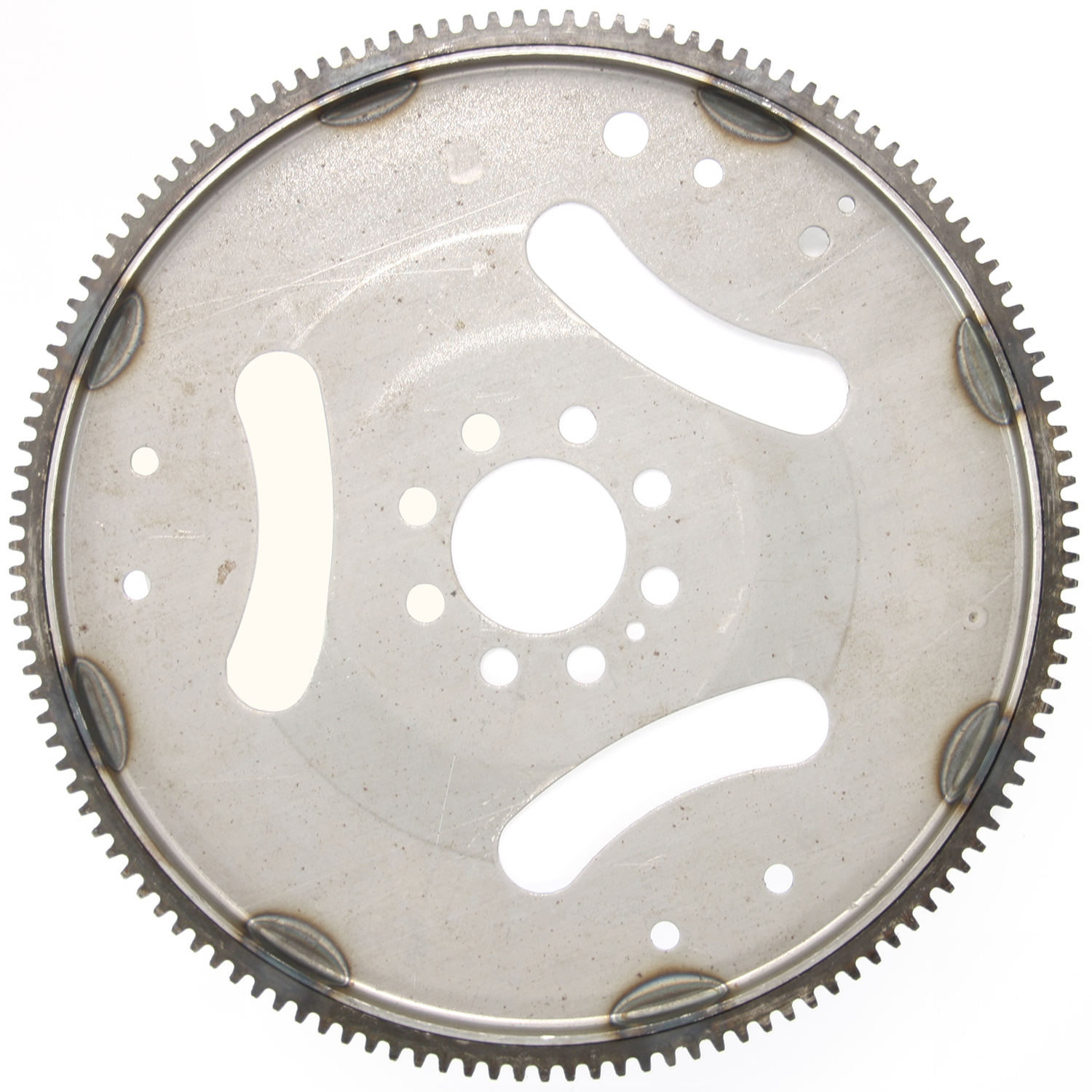

ATP Automatic Transmission Flex Plate
Part # Z-628 | Line Code: ATP
brandNameImage
brandNameImage

$90.77
$90.77
error
Not Fitted

Product Details
expand_less
Diameter (mm) 336.55
SFI Approved N
Heavy Duty Supplier No
Tooth Quantity 131
Teeth 131
TOOTH 131
LineCode ATP
Outer Diameter 13.25"
Mounting Hole Diameter 10.25
Weight Added N
Contents or Additional Details Center Hole Dia. 2.125" Torque Converter 10.25" Dia Pattern
Inside Diameter 2.125
SFI Certification Sticker Included N
Pitch Flywheels 12
Diameter (in) 1.104
Outside Diameter 13.25
Safety Rating N/A
California Proposition 65 Required N
Part Terminology Automatic Transmission Flexplate

Features & Benefits
expand_more
Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability

Application Summary
expand_more

Chrysler 300 19-05, Dodge Challenger 17-09, Dodge Charger 19-06, Dodge Durango 19-14, Dodge Magnum 08-05, Jeep Commander 10-06, Jeep Grand Cherokee 19-14, 10-05, Ram 1500 19-14, Ram 1500 Classic 19
