Timing Parts & Camshafts

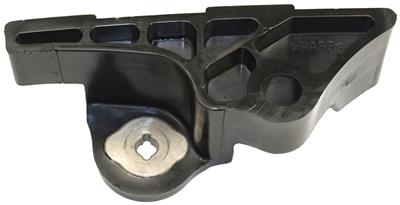

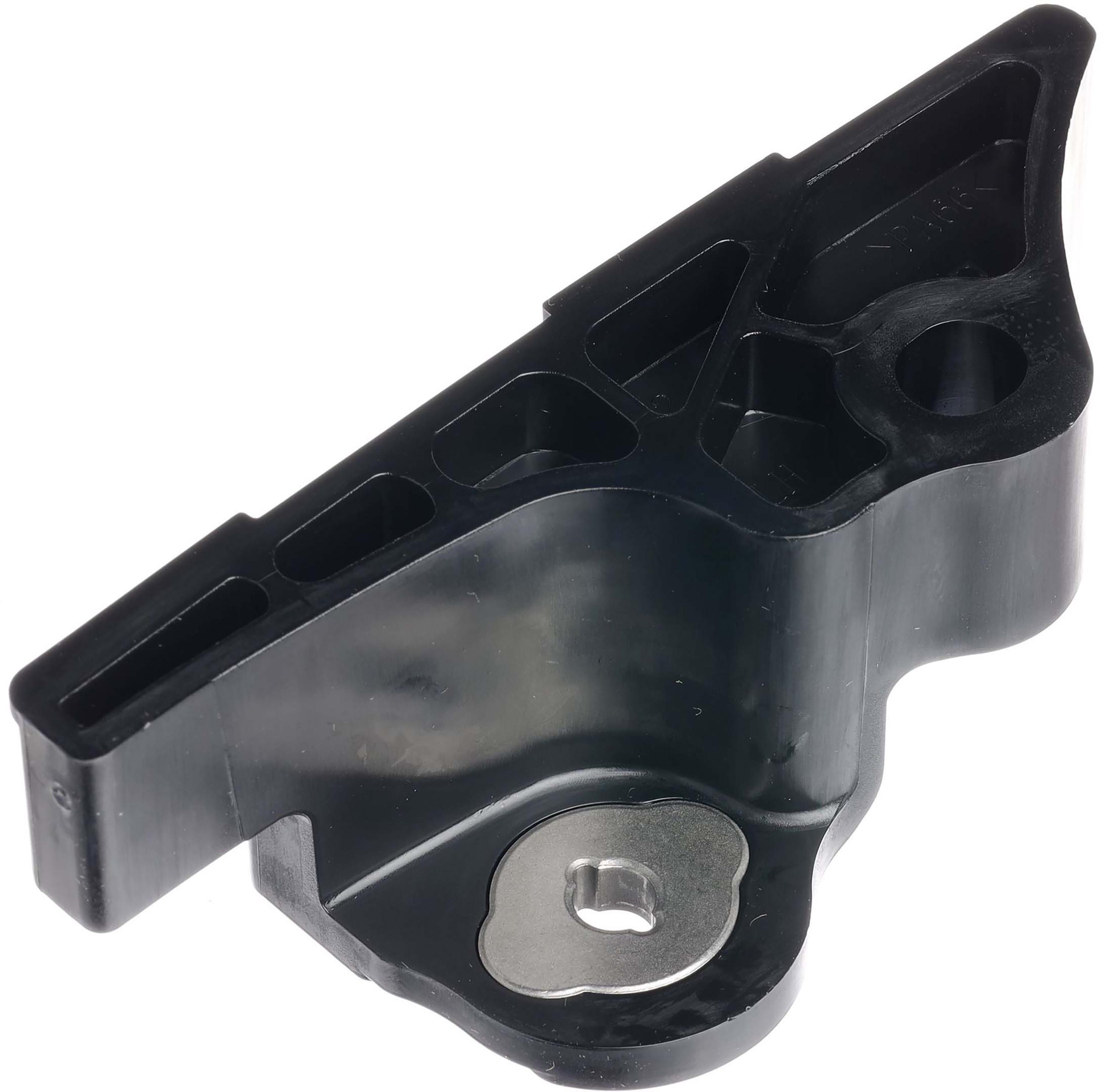

Engine Timing Chain Guide
Part # 9-5691 | Line Code: CLY
brandNameImage
brandNameImage

$18.00
$18.00
error
Not Fitted

Product Details
expand_less
Length 4.2
Width 1.43"
Height 1.636"
Mount Hole Inside Diameter 0.244"/0.373"
Mounting Hole Quantity 2
Mounting Bracket Included Yes
Bracket Included Yes
Bolts Included No
Manually Adjustable No
Shoe Included Yes
Material Nylon
Mounting Hole Diameter (uom:in) 0.244"/0.373"
Mount Hole Quantity 2
Mount Hole Diameter 0.244"/0.373"
Width (uom:mm) 36.322
Width (uom:in) 1.43
Mounting Hole Diameter (uom:mm) 6.19, 9.47
Height (uom:mm) 41.5544
Height (uom:in) 1.636"
Part Terminology Engine Timing Chain Guide

Features & Benefits
expand_more
Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Designed to meet or exceed OEM performance requirements; Refer to our online catalog for detailed application-specific information
