Product Details
expand_less
| Length B - Inch |
2.53 |
| Bearing Cap Axis 1 Diameter |
25 |
| Length A - Inch |
2.53 |
| Heavy Duty Supplier |
Yes |
| Image |
UJoint_4Plain.tif |
| Lubricateable |
NO |
| Bearing Cap Axis 2 Diameter |
25 |
| Bearing Diameter B - mm |
25.0 |
| Greasable |
No |
| Length A - mm |
64.2 |
| OE Series |
Mitsubishi |
| Alliance Keywords |
UJoint, Universal Joint, joint universel |
| Part Description |

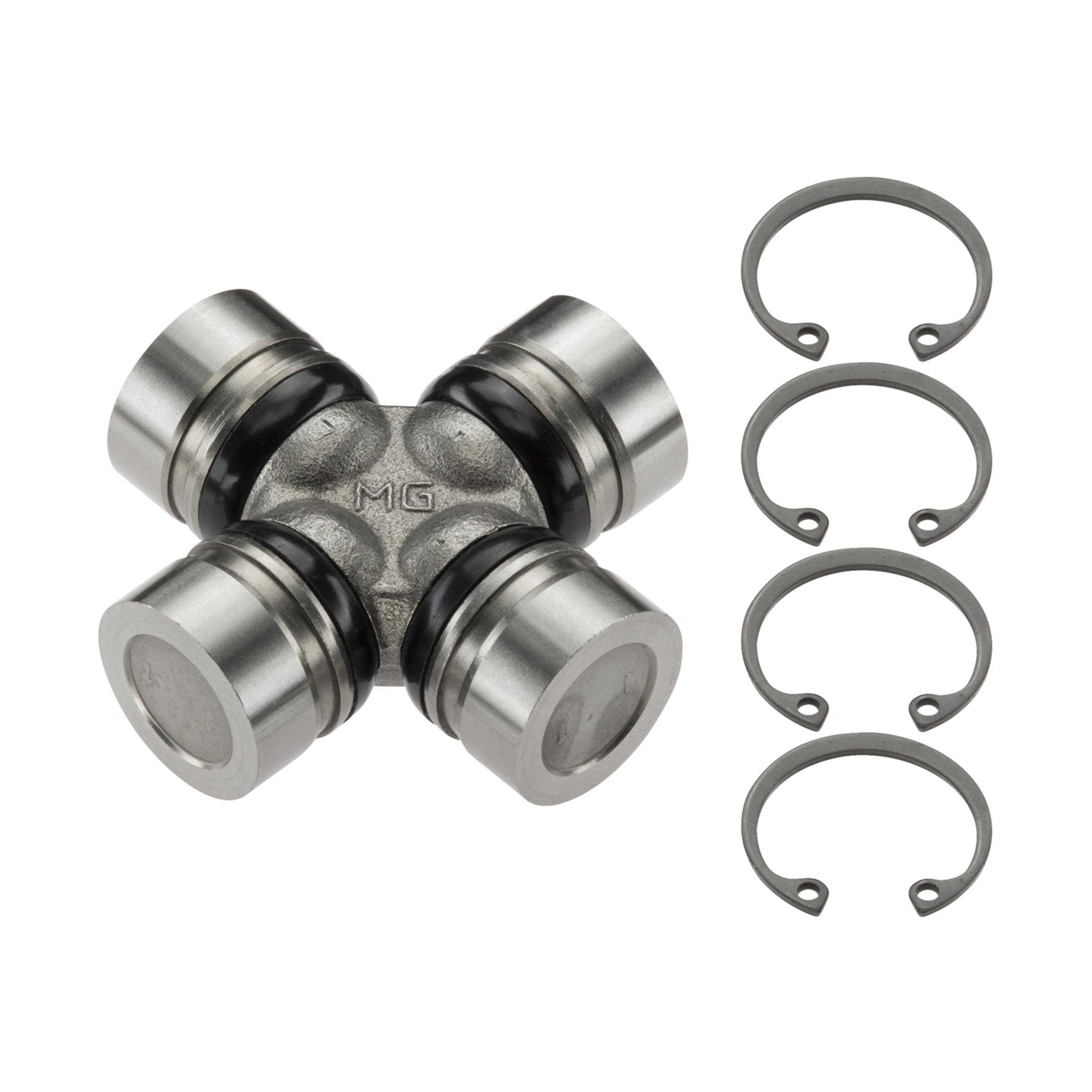

Universal Joint |
| Bearing Diameter A - mm |
25.0 |
| Length B - mm |
64.2 |
| Length Axis 1 |
1.548 |
| Length Axis 2 |
1.548 |
| Bearing Cap Type |
4 Plain Round Bearings |
| Length Measurement A |
Outside of Bearing To Outside of Bearing |
| Bearing Type B |
Round Plain |
| Bearing Diameter B - Inch |
0.985 |
| Length Measurement B |
Outside of Bearing To Outside of Bearing |
| Bearing Type A |
Round Plain |
| Bearing Diameter A - Inch |
0.985 |
| U-Joint Identification |
4 Plain Round Bearings |
| Prop 65 Label (Yes/No) |
No |
| Grade Type |
Premium |
| Part Terminology |
Universal Joint |
Features & Benefits
expand_more
Backed by superior materials and rigorous testing, MOOG Premium universal joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
Application Summary
expand_more
1999-2005 Suzuki Grand Vitara JLX Plus XL-7 JLX Plus SE XL-7 Plus Limited JLX XL-7 Touring JLS Plus JLS Plus SE XL-7 Limited JLS (Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case, At Transmission, At Rear Axle, Rear Driveshaft at Transmission, Rear Driveshaft at Rear Axle); 1986-1995 Suzuki Samurai (Intermediate Shaft at Transmission, Front Driveshaft at Transfer Case, Intermediate Shaft at Transfer Case, Front Driveshaft at Front Axle, Rear Driveshaft at Transfer Case, Rear Driveshaft at Rear Axle); 1989-1998 Suzuki Sidekick (Front Driveshaft at Transfer Case, Rear Driveshaft at Rear Axle, Front Driveshaft at Front Axle, Rear Driveshaft at Transmission, At Rear Axle, At Transmission); 1999-2004 Suzuki Vitara (Rear Driveshaft at Rear Axle, Rear Driveshaft at Transmission, Front Driveshaft at Front Axle, At Transmission, At Rear Axle, Front Driveshaft at Transfer Case); 2002-2006 Suzuki XL-7 (Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case); 1979-1982 Dodge D50 (At Transmission, At Rear Axle, Front Driveshaft at Transfer Case, Front Driveshaft at Front Axle); 1981-1983 Dodge Challenger (At Center Bearing, At Transmission, At Rear Axle); 1971-1979 Dodge Colt (At Rear Axle, At Transmission); 1983-1984 Dodge Power Ram 50 (At Transmission, At Rear Axle, At Center Bearing); 1987-1989 Dodge Raider (Front Driveshaft at Front Axle, Front Driveshaft at Transfer Case); 1983-1993 Dodge Ram 50 (At Rear Axle, At Transmission, At Center Bearing, Front Driveshaft at Transfer Case, Front Driveshaft at Front Axle); 1979-1982 Plymouth Arrow Pickup (At Rear Axle, At Transmission); 1976-1980 Plymouth Arrow (At Rear Axle, At Transmission); 1981-1983 Plymouth Sapporo (At Center Bearing, At Transmission, At Rear Axle); 1989-2004 Chevrolet Tracker (At Transmission, Rear Driveshaft at Transmission, At Rear Axle, Front Driveshaft at Transfer Case, Front Driveshaft at Front Axle, Rear Driveshaft at Rear Axle); 1989-1991 GMC Tracker (Front...
