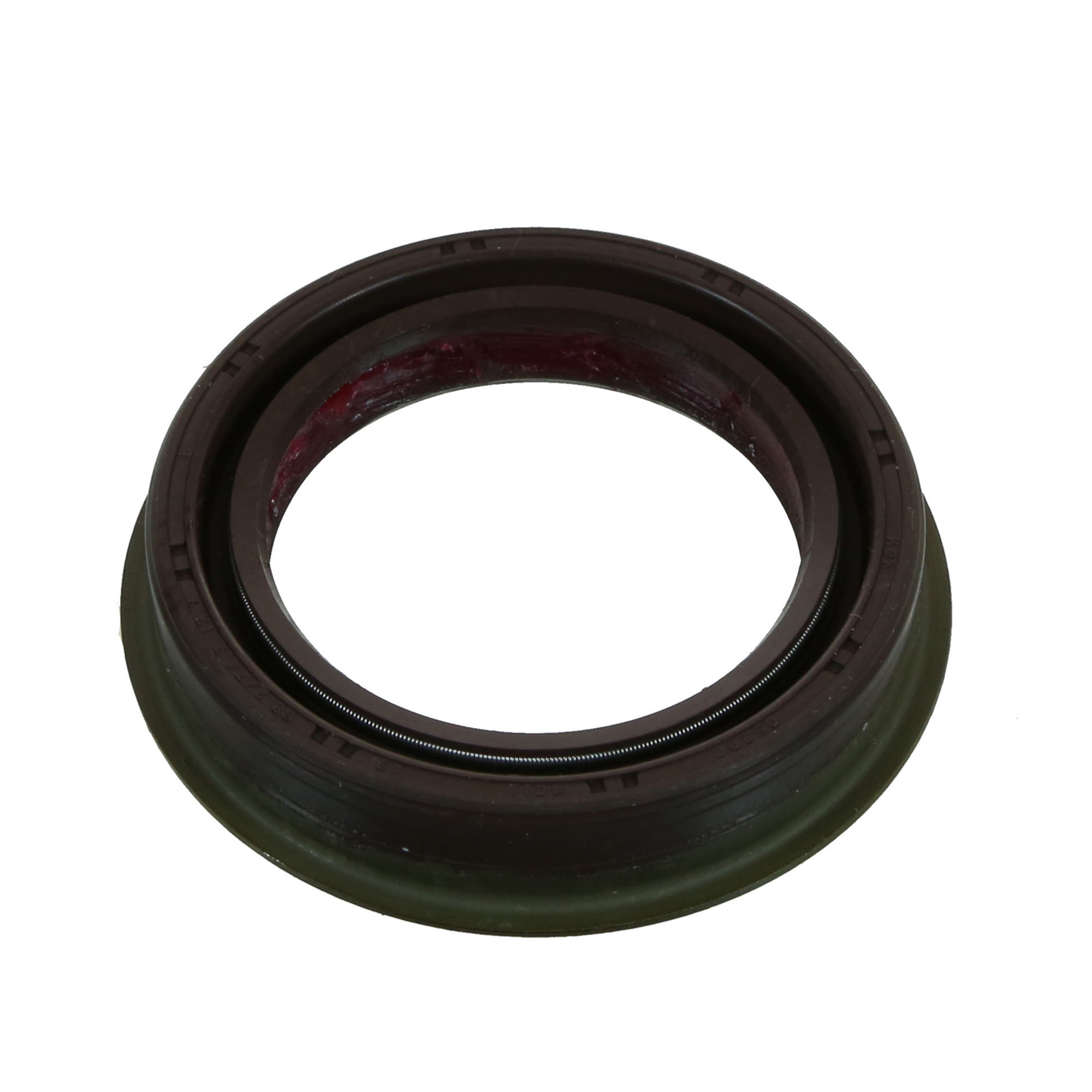

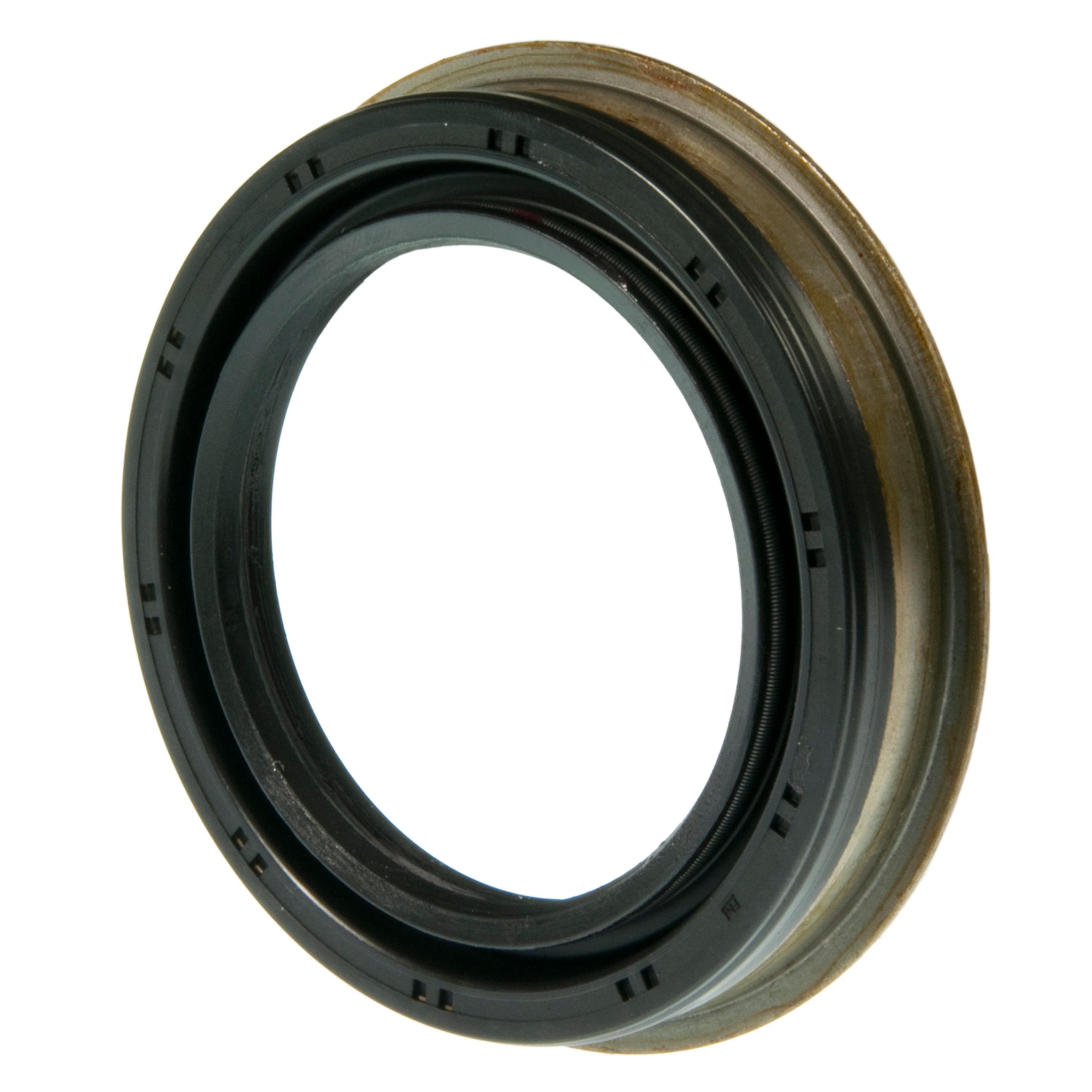

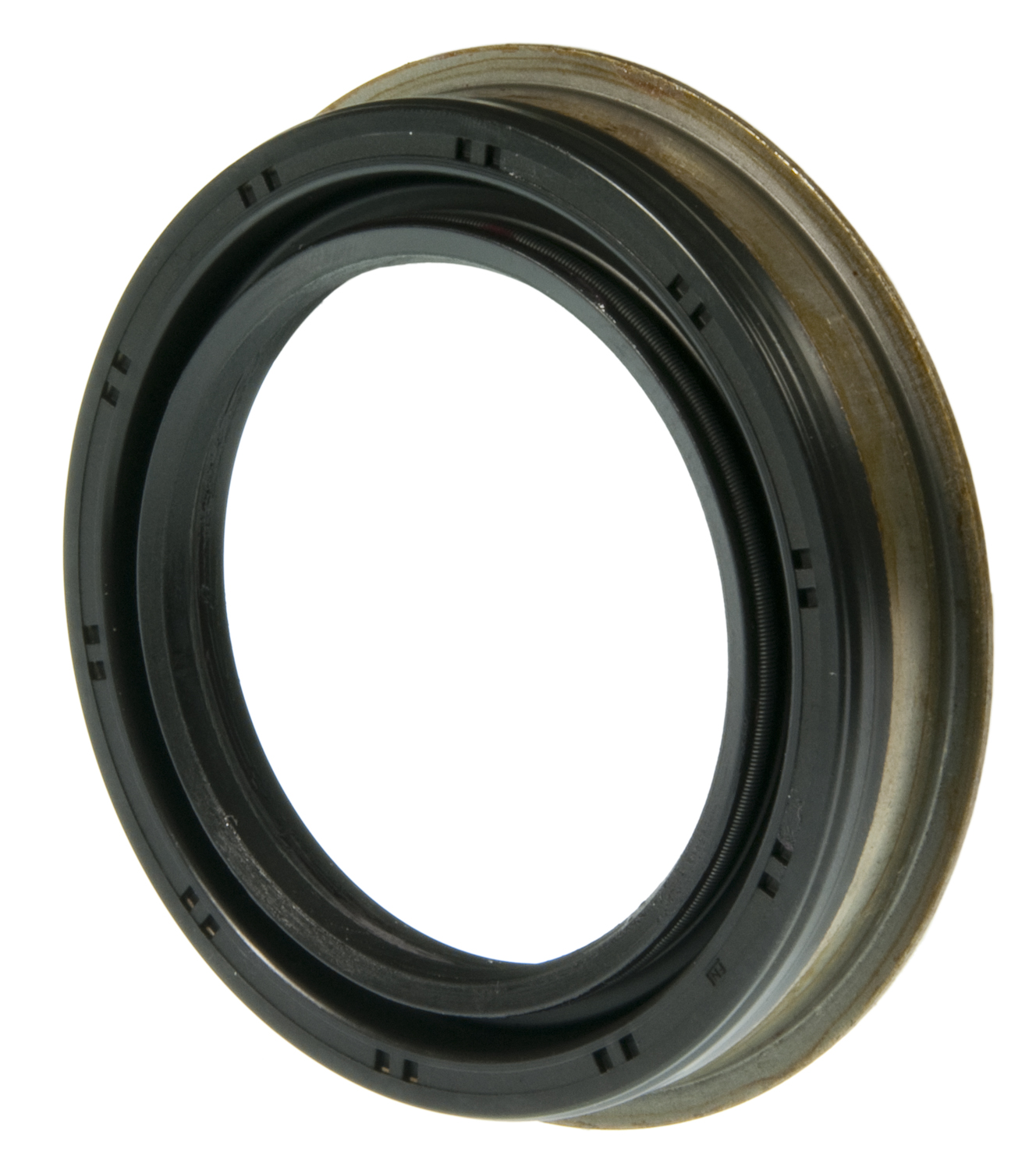

Transfer Case Output Shaft Seal
Part # 710694 | Line Code: NAT
brandNameImage
brandNameImage
$21.19
$21.19
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Seal Type Seal
Heavy Duty Supplier Yes
Unit of Dimension Metric
Housing Bore (MM) 75.000
Outside Diameter (Inch) 2.961
Shaft (MM) 54.000
Inside Diameter 2.126
Housing Bore (Inch) 2.953
Helix Type Bi-Directional Lip Design
WIDTH (MM) 12.500
Width 0.492
Part Description Oil Seal
Flanged Outside Diameter (Inch) 3.189
Shaft Diameter 2.126
Material Fluoro-Elastomer
Width (inch) 0.492
Thickness 0.492
Series 710600
Type 87
Flanged Outside Diameter 81.000
Outside Diameter (MM) 75.200
Sealing Material Fluoro-Elastomer
Prop 65 Label (Yes/No) No
Outside Diameter 2.961
Flanged Outside Diameter (MM) 81.000
Grade Type Premium
Shaft (Inch) 2.126
Housing Bore 2.953
Part Terminology Transfer Case Output Shaft Seal
Features & Benefits
expand_more
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.
Application Summary
expand_more
2008-2009 Chrysler Aspen (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed); 2011-2019 Dodge Durango (Rear, Front) (Drive: AWD / Qualifier: with Magna 3023 Transfer Case, 2 Speed); 2007-2011 Dodge Nitro (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed); 2006-2010 Jeep Commander (Front) (Drive: 4WD / Qualifier: with New Process 140 Transfer Case, 1 Speed, with New Process 245J Transfer Case, 2 Speed); 2005-2019 Jeep Grand Cherokee (Front, Rear) (Drive: AWD / Qualifier: with New Process 140 Transfer Case, 1 Speed, with Magna 3023 Transfer Case, 2 Speed); 2008-2012 Jeep Liberty (Front) (Drive: 4WD / Qualifier: with Magna 3022 Transfer Case, 2 Speed, with Magna 1522 Transfer Case); 2016-2019 Cadillac CT6 (Front) (Drive: AWD / Qualifier: with Magna 3713G Transfer Case, 1 Speed); 2017-2019 Nissan TITAN (Rear) (Drive: 4WD / Qualifier: with Magna TX91A Transfer Case, 2 Speed); 2016-2019 Nissan TITAN XD (Rear) (Drive: 4WD / Qualifier: with Magna TX91A Transfer Case, 2 Speed)
